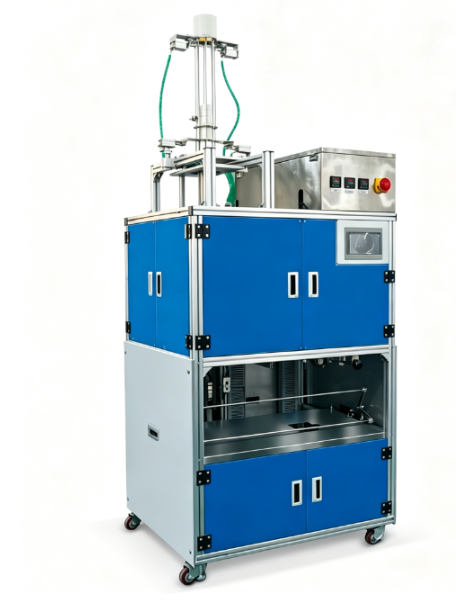

JY‑450/750V Vertical Paper Cup Packaging Machine
Scope of Application 适用范围
Specially designed for packaging paper cups and paper bowls. 专用于纸杯、纸碗的包装。
Main Features 主要特点
- Compact structure, stable performance and simple operation. 结构紧凑，功能稳定，操作简单。
- Servo motor + air‑cylinder cutting design, full Xinjie electric control system. 本机采用伺服电机和气缸切刀，整套电器采用信捷控制系统。
- Self‑checking fault function, easy fault reading. High‑sensitivity photoelectric color‑mark tracking guarantees accurate cutting position. 具备自检功能，故障便于读取。高感应光电色标跟踪，使裁切位置更加精准。
- PID temperature control, compatible with various packaging films. Position‑stop function, no adhesive and no film waste. PID 温度控制，适用于各类包装膜材料。位置停止功能，无粘合剂，无膜浪费。
- Clean rotation system, reliable running and convenient maintenance. 旋转系统洁净，运行可靠，维护更方便。
- Full software‑based control, easy for parameter adjustment and technical upgrade. 全部控制由软件操作，方便功能调整与技术升级。
| Item 项目 | Specification 参数 |
|---|---|
| Max. film width 最大胶卷宽度 | 450mm |
| Max packaging capacity 最大包装容量 | 5‑15 times/min |
| Suitable film thickness 合适的膜厚 | 0.012‑0.06mm |
| Length of bags 袋长 | 150‑600mm |
| Packaging width 包装宽度 | Φ50‑Φ125mm |
| Packaging height 包装高度 | 450mm |
| Suitable material 适用包装材料 | BOPP, CPP, HDPE, composite film |
| Total power 总功率 | 4Kw 220V |
| Overall dimensions (L×W×H) 外形尺寸 (长 × 宽 × 高) | 120010002100mm |
| Weight 重量 | 450KG |

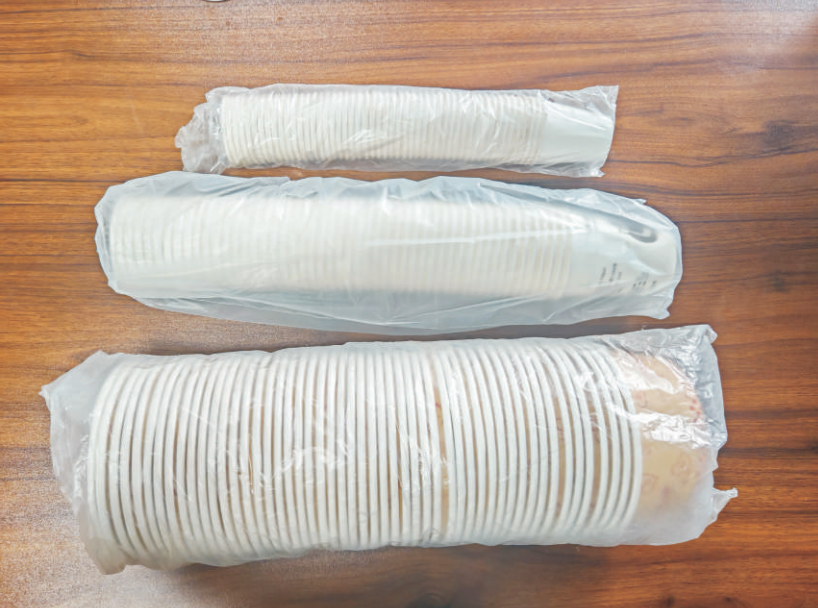

samples
Q：What products can this vertical machine pack? 这台立式机器可以包装什么产品？
A：Paper cups and paper bowls. 纸杯与纸碗。
Q：What is the production speed of JY‑450?
A：5‑15 cycles per minute. 每分钟 5‑15 次。
Q：What film materials can be used? 可以使用哪些包装膜？
A：BOPP, CPP, HDPE and composite film. BOPP、CPP、HDPE、复合膜。
Q：What is the machine dimension? 设备外形尺寸多大？
A：1200×1000×2100 mm, weight 450KG. 1200×1000×2100 毫米，重量 450 千克。
Q：Does it have fault‑check function? 具备故障自检功能吗？
A：Yes, self‑check function, fault code can be read directly. 支持自检功能，可直接读取故障信息。
Q：What control system is equipped? 配套什么控制系统？
A：Complete Xinjie control system. 整套信捷控制系统。
