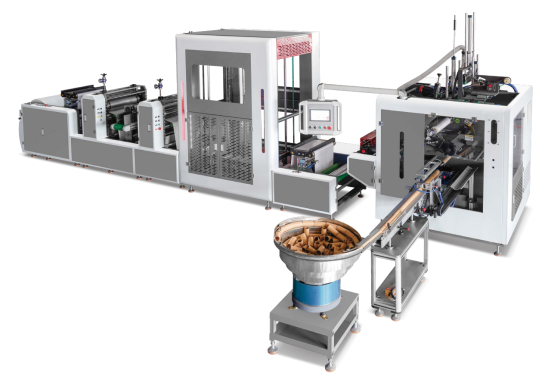

JY‑A350 / A450 / A550 Fully Automatic Core‑type Slitting and Rewinding Machine

🔹Application 适用范围

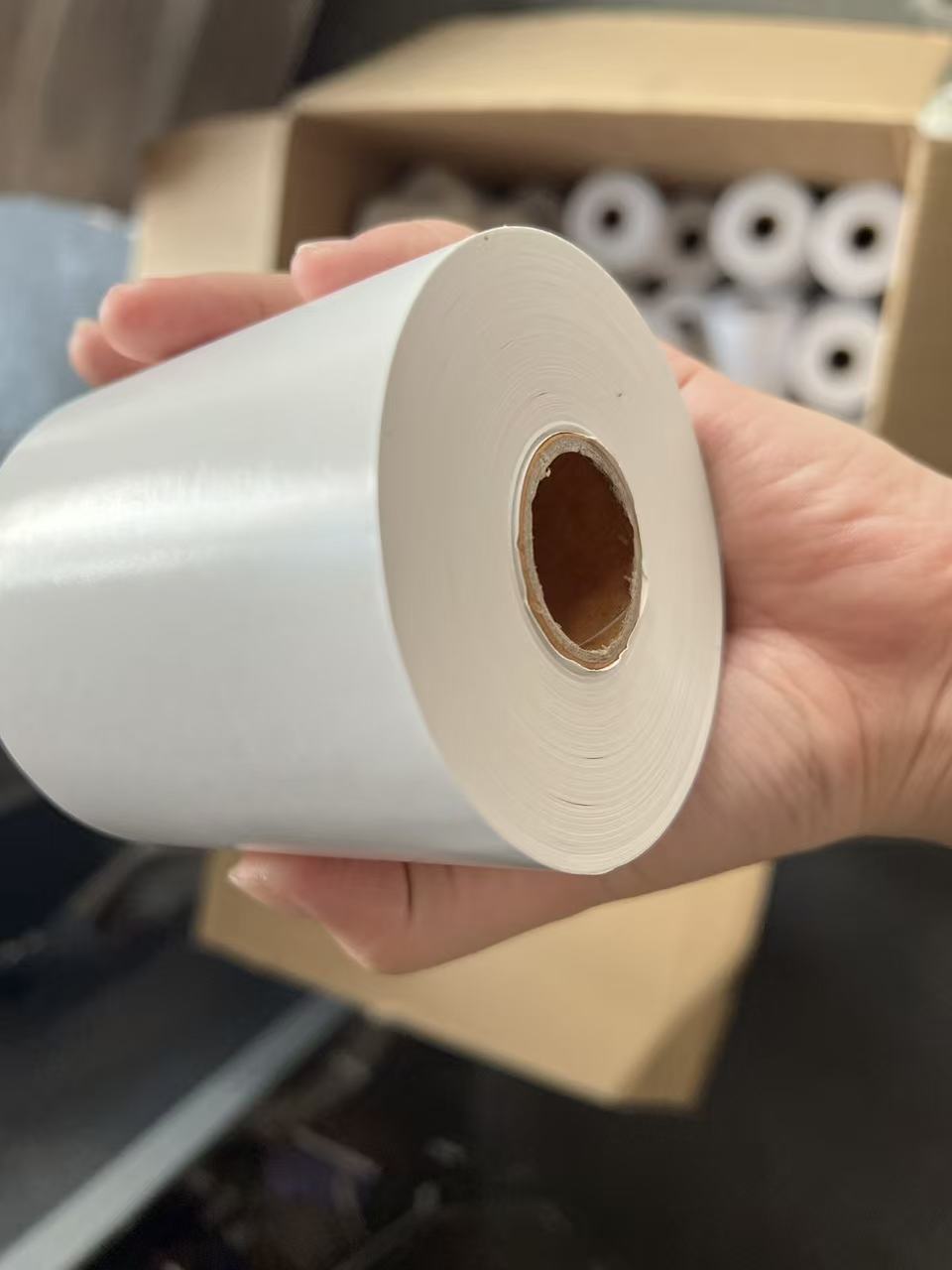

English: Suitable for thermal paper, coated paper, self‑adhesive labels, biodegradable film, producing finished small rolls with paper core.

中文：适用于热敏纸、铜版纸、不干胶标签、可降解薄膜，生产带纸管成品小卷。

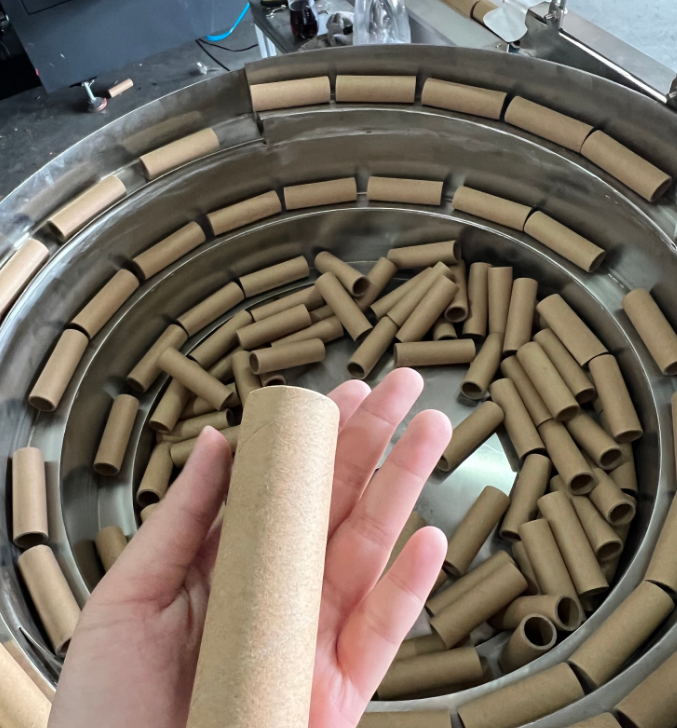

Auto paper‑core feeding by vibration bowl，振动盘自动供给纸管
25‑meter material accumulator for non‑stop splicing，25 米储料架，换卷不停机接料
Max unwinding diameter 1200 mm jumbo roll, high production efficiency，最大 1200mm 母卷，生产效率高
Running speed 80‑150 m/min, stable rewinding roll shape，运行速度 80‑150m/min，卷型紧实整齐
Air‑expanding shaft and die‑cutting roller are optional parts，收卷气涨轴、模切辊筒为选配件

Product Details

Question

Item 项目	JY‑A350	JY‑A450	JY‑A550
Max. Unwinding Diameter 放卷最大直径	1200 mm	1200 mm	1200 mm
Max. Unwinding Width 放卷最大宽度	400 mm	500 mm	600 mm
Max. Winding Diameter 收卷最大直径	250 mm	250 mm	250 mm
Max. Winding Width 收卷最大宽度	350 mm	450 mm	550 mm
Machine Speed 整机速度	80‑150 m/min	80‑150 m/min	80‑150 m/min
Total Power 整机功率	Approx. 25 KW	Approx. 25 KW	Approx. 25 KW
Material Accumulator 储料架	Approx. 25 m	Approx. 25 m	Approx. 25 m
Air Pressure 气压	0.6 Mpa	0.6 Mpa	0.6 Mpa
Power Supply 电源	380V‑50HZ	380V‑50HZ	380V‑50HZ
Air‑expanding Shaft For Winding 收卷气涨轴	Optional 选配	Optional 选配	Optional 选配
Die‑cutting Roller 模切辊筒	Optional 选配	Optional 选配	Optional 选配
Machine Dimension (L×W×H) 整机尺寸	8200×3000×2100 mm	8200×3250×2200 mm	8200×3500×2300 mm

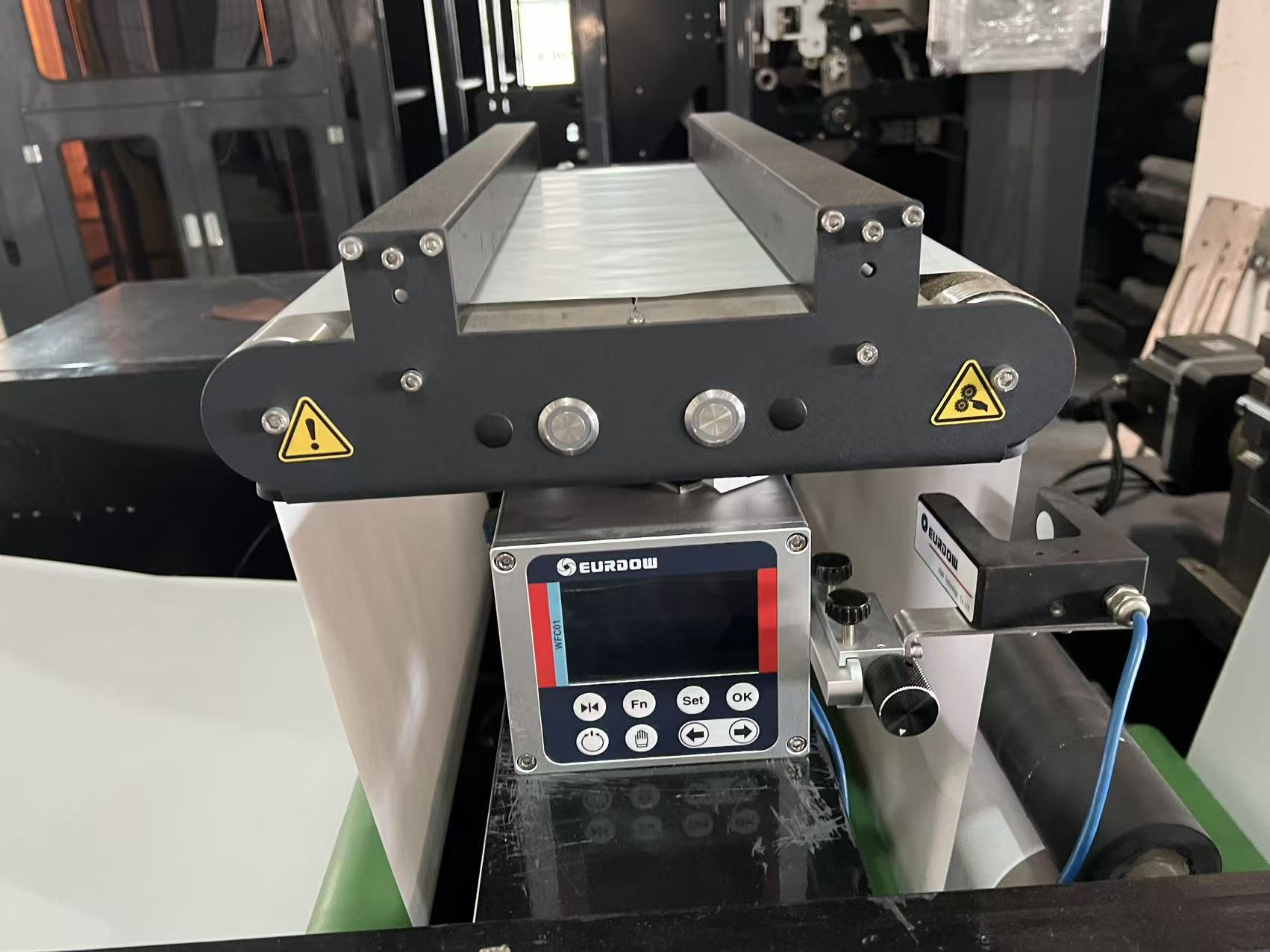

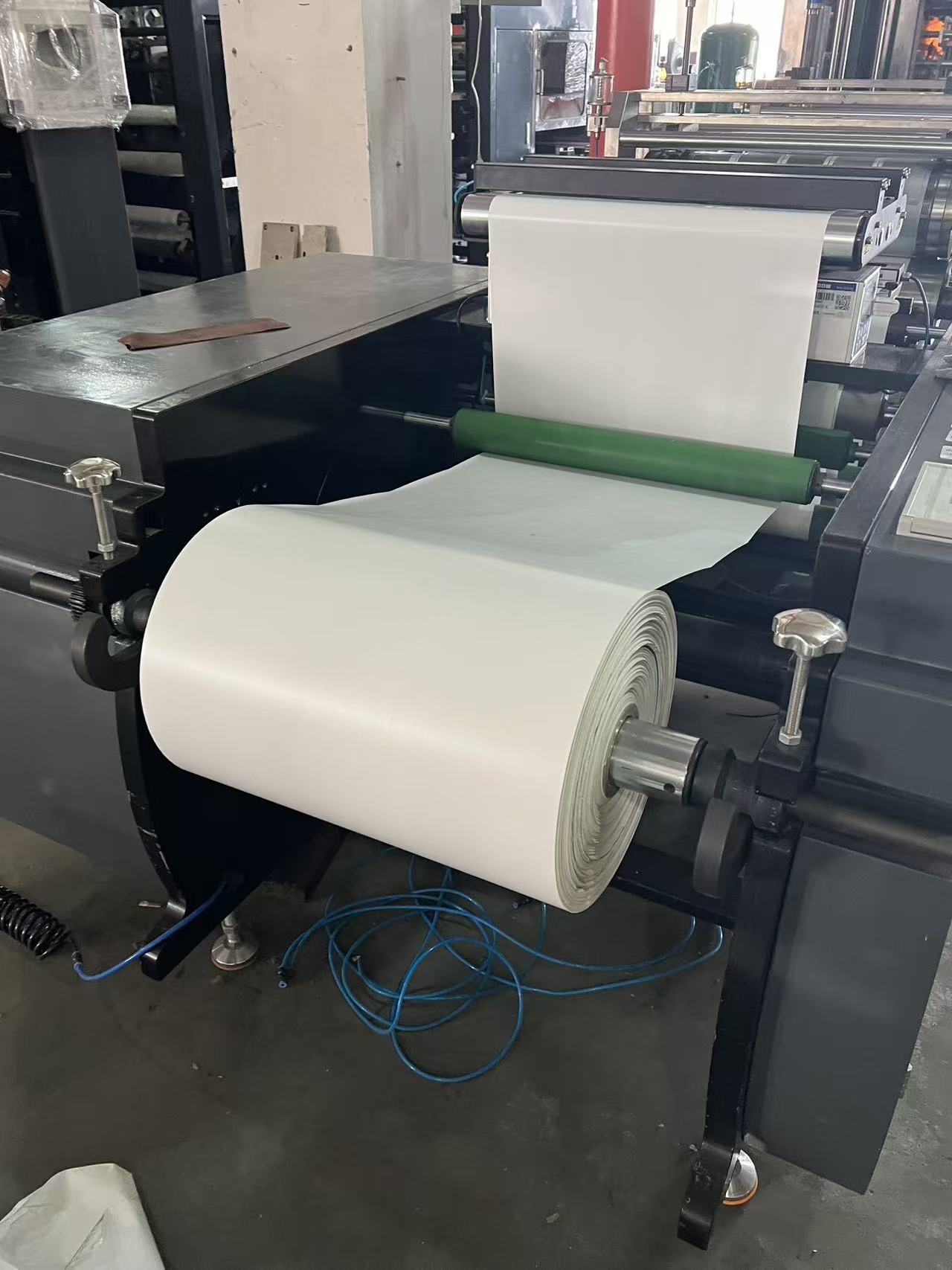

Unwinding Unit 放卷单元 Tension & Web Guiding System 张力纠偏系统

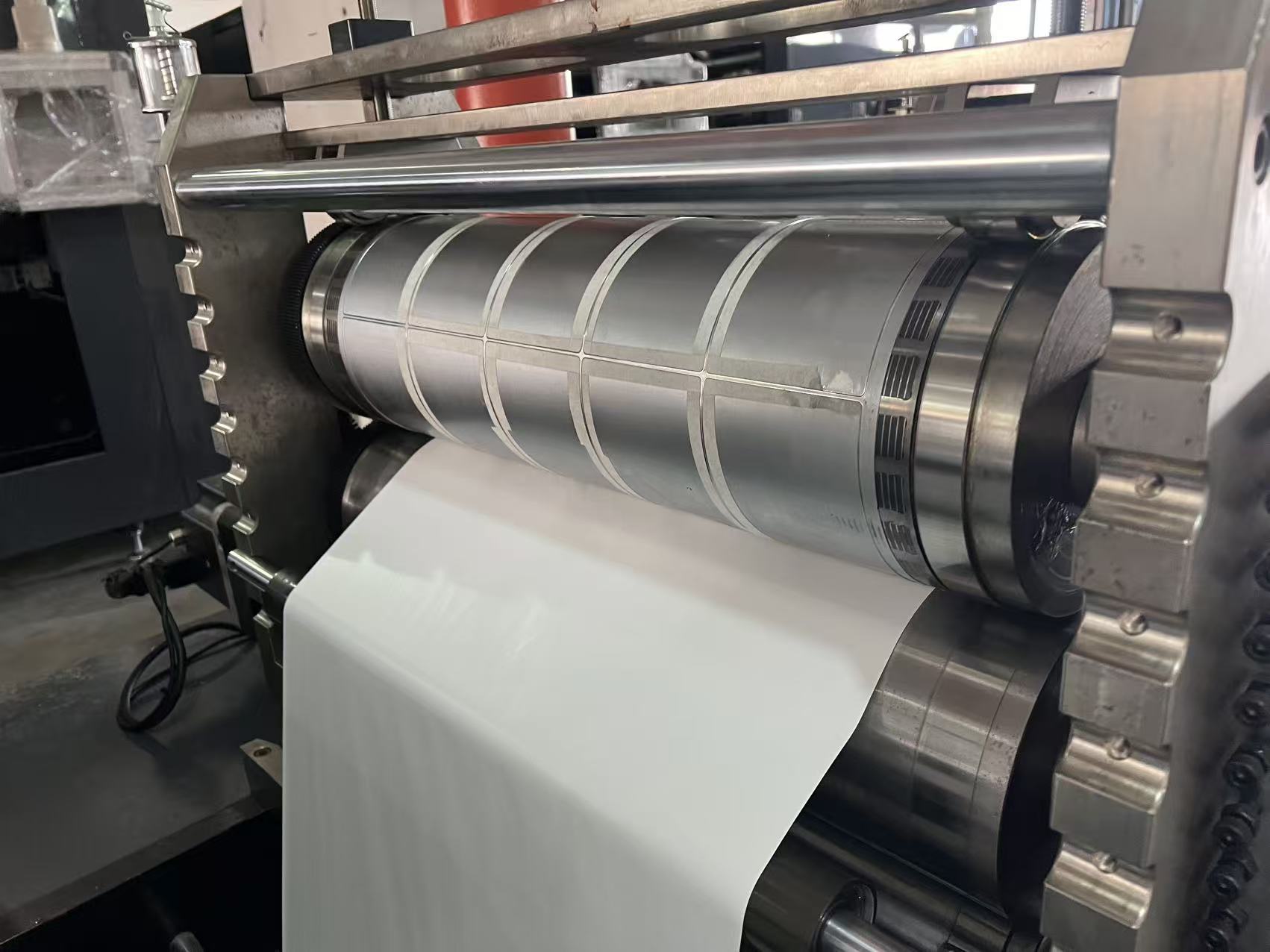

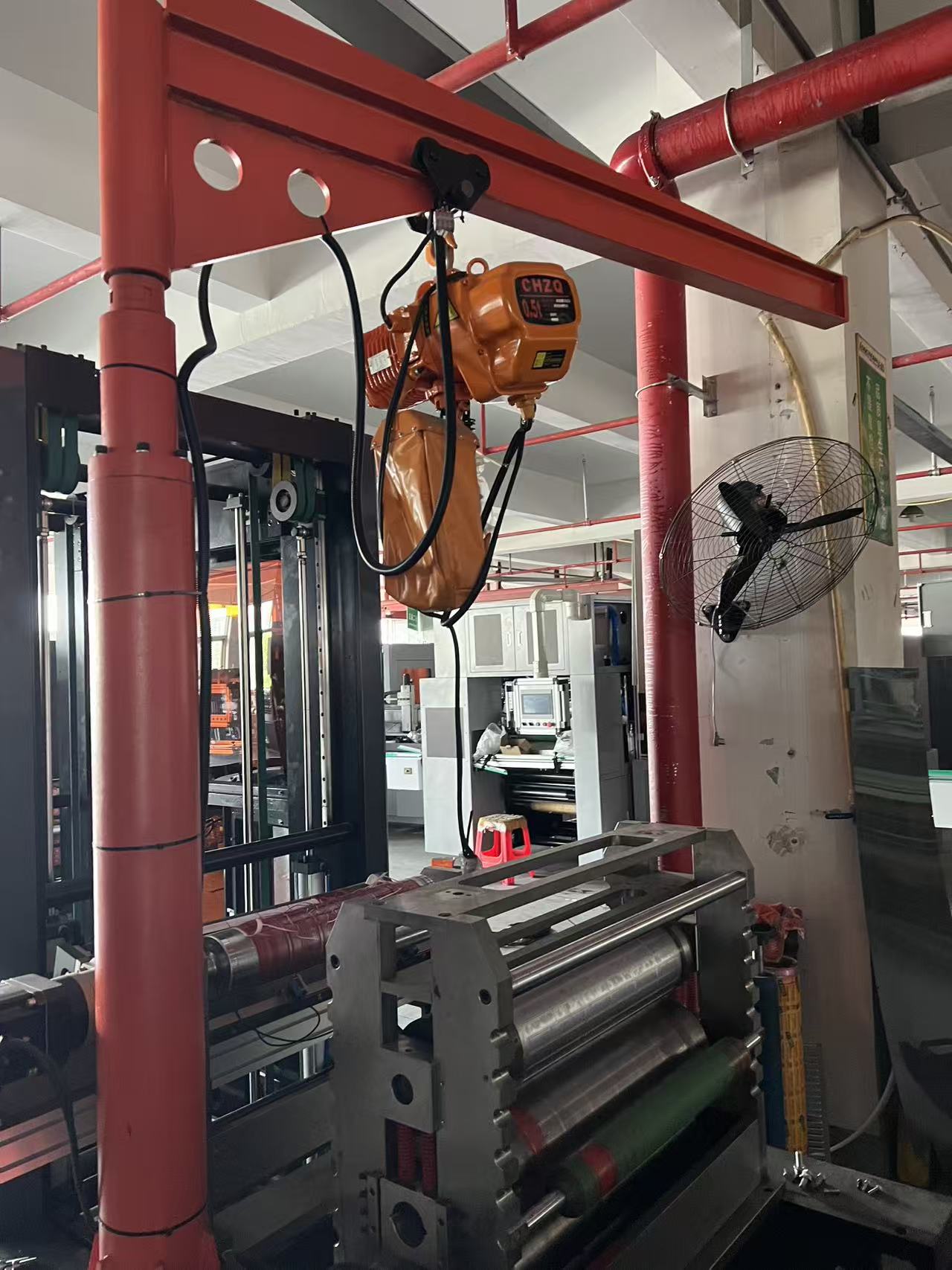

Flat‑press Die‑cutting Station 平压模切工位 Standard‑Equipped Electric Hoist Lifting Frame 标配电动葫芦吊装架

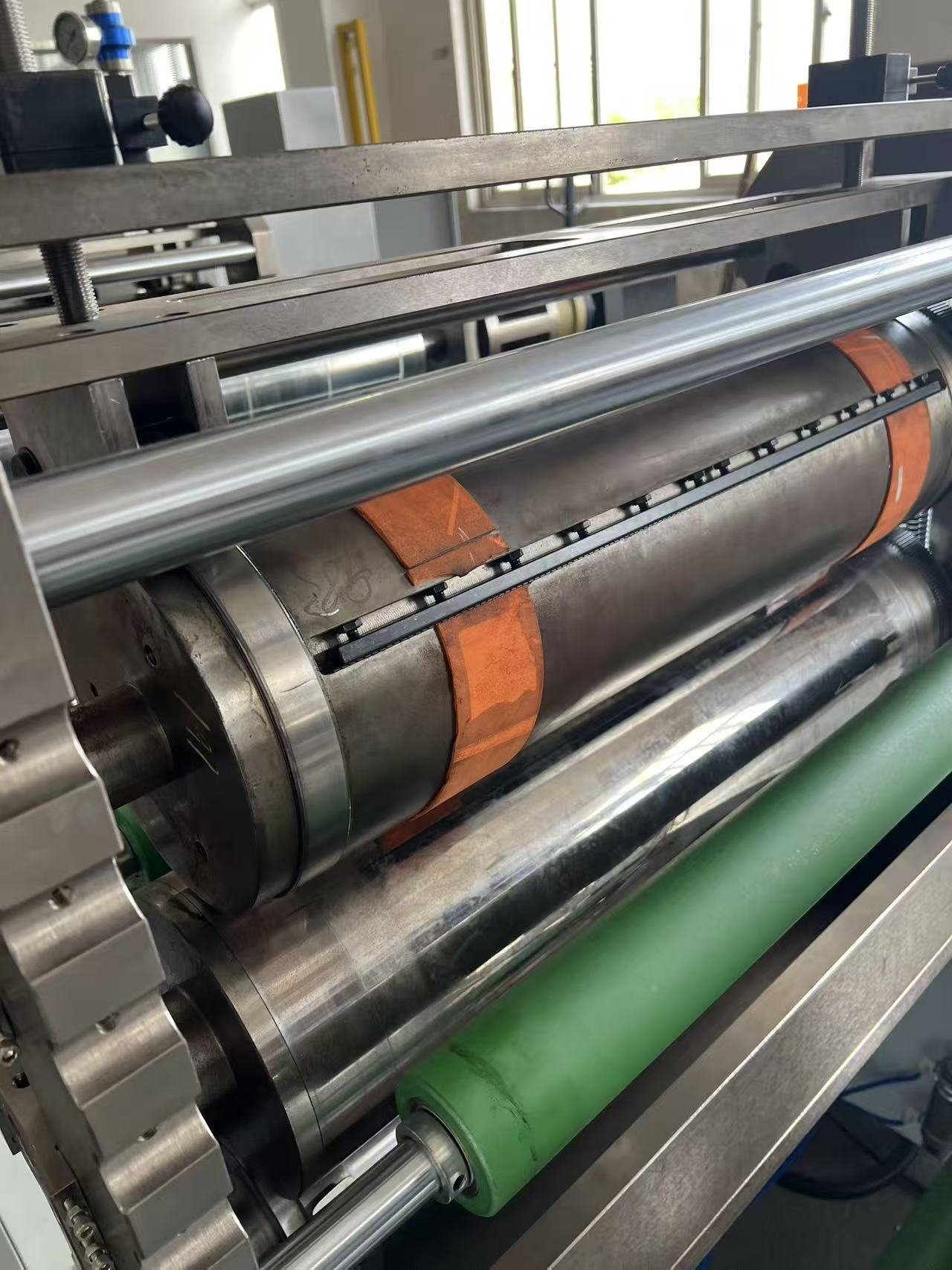

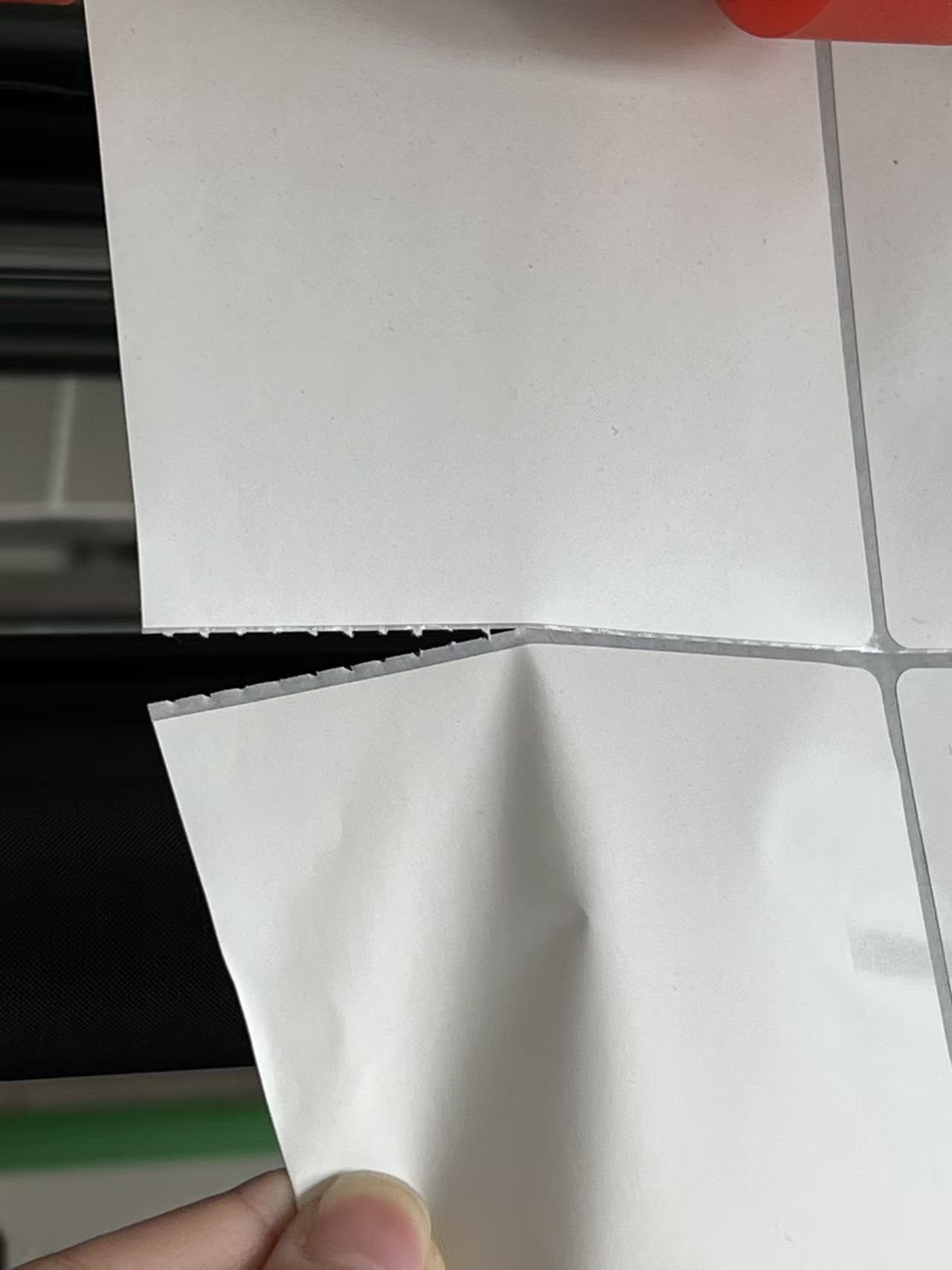

Optional rotary perforation unit for easy‑tear label perforation lines.
选配旋转齿刀单元，用于制作标签易撕齿孔线
