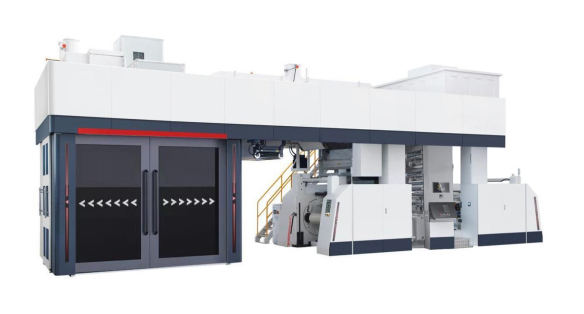

JYCI‑8C‑1200 CI Flexo Printing Machine | High‑Speed 500m/min Non‑Stop Roll Change
| Item | Parameter |
|---|---|
| Model | JYCI‑8C‑1200 |
| Printing Colors | 8 Colors |
| Max. Material Width | 1250 mm |
| Max. Printing Width | 1200 mm |
| Printing Repeat Length | 400‑850 mm |
| Printing Register Precision | ±0.075 mm |
| Drive Type | Gear‑less, full servo direct drive |
| Anilox Roller | Sleeve‑type, customizable screen count |
| Mechanical Max. Speed | 550 m/min |
| Actual Stable Printing Speed | 15‑500 m/min |
| Material Roll Diameter Range | 100‑800 mm |
| Air Shaft | Φ76 mm ×6 pcs |
| Total Installed Power | 510 kW (Actual consumption ~65%) |
| Main Frame Thickness | 150 mm solid steel plate |
| Air Consumption (Machine run) | 750 L/min |
| Air Consumption (Sleeve change) | 1500 L/min |
| Air Pressure Requirement | ＞6 bar |
| Cooling‑water Pressure | ＞2 bar |
| Ink Type | Water‑based ink / Solvent‑based ink |
| Processable Material | PE, PET, OPP plastic films |
| Application | Food packaging bags, flexible pouches |

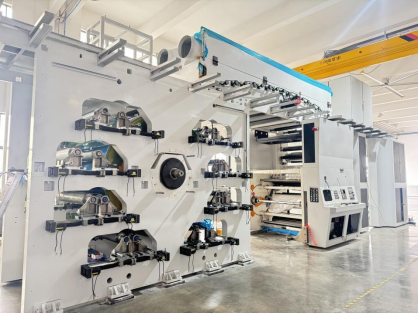

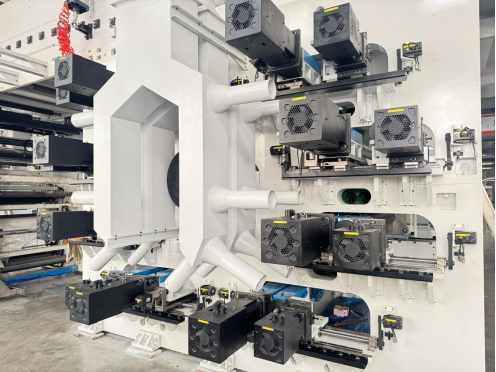

Printing Group Gearless transmission for color units, directly driven by servo motors.

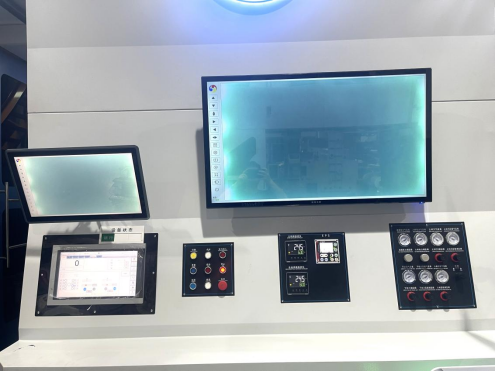

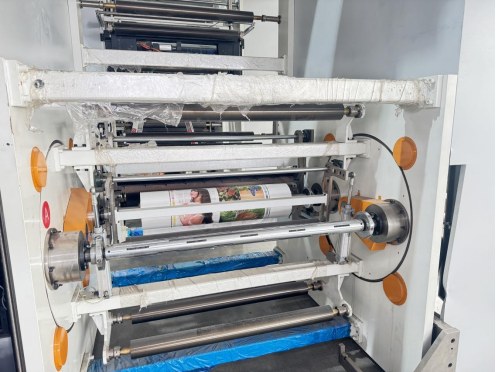

Still Image-Display Screen & Control Panel Non-stop Automatic Roll Change
Q1: What printing speed can JYCI‑8C‑1200 stably reach in real production?
A: The mechanical maximum speed is 550 m/min. Under qualified material and ink conditions, the stable continuous printing speed can hit 500 m/min, suitable for mass‑volume flexible‑film packaging orders.
Q2: What materials can this 8‑color CI flexo press process?
A: Mainly for PE, PET, OPP plastic films, widely used for food packaging bags and pouches. It supports both water‑based ink and solvent‑based ink.
Q3: What benefits does non‑stop roll‑change bring for high‑speed production?
A: Dual‑station unwinder & rewinder finish automatic splice without stopping the machine. It avoids frequent downtime caused by coil replacement, so the machine can keep running at high‑speed and maximize your daily output.
Q4: Can we customize anilox roller screen count, plate cylinder repeat length and machine voltage?
A: Yes. Anilox roller screen count, plate cylinder circumference and working voltage are all customizable based on your production requirements.
Q5: What is the custom production lead‑time?
A: Standard customized lead‑time is 120 -180working days after design confirmation and deposit received.
Q6: How many containers are needed for shipment?
A: Complete machine requires three 40‑HC high cube containers.
Q7: Do you provide overseas installation and after‑sales support?
A: Yes. We offer overseas commissioning guidance, remote online troubleshooting and spare‑parts supply.
